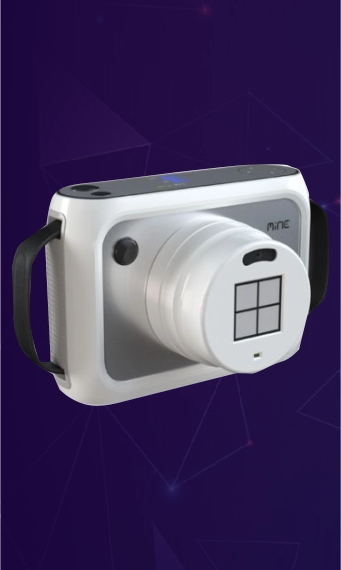

Mine Alnu Medical Handheld X-ray
Mine X-Ray brings to you the best in class Portable X-ray system.
The system is designed for highest levels of user convenience and safety even though it comes in the smallest size and package of medical X-Ray available in the market.
- X-Ray Generator Mine2
- Detector DXD 17X17 / 17X14
- Laptop and Console Software
MINE ALNU Medical Handheld X-ray
Product Differentiation
01
X-RAY that can be used outside medical institutions
Acquisition of temporary permission to shoot outside medical institutions
02
Safety Distance Sensor
It is designed so that the distance to the subject is not too close .
03
Wireless Remote Control
Wireless remote control available for shooting from a distance
| KEY SPECIFICATION | |
|---|---|
| Model | Mine Alnu |
| Input power | 50/60 Hz, 1.0A |
| Output Power | 120W ~ 240W |
| Type | High Frequency Inverter |
| Tube Voltage | 40 ~ 80kV |
| Tube Current | 3mA |
| Exposure Time Range | 0.1sec ~ 1.3sec. |
| Focal Spot Size | 0.4mm |
| Weight | 3.0kg |
Check out the X-Ray photos actually taken with MINE ALNU!
